abhijeet080808 · 05-14-2009, 09:18 PM

Quote:

Originally Posted by Shreeni0403

OMG those are lovely designs, i am loving it
Thank you very for the idea, i ll try out.

Actually i had thought not to drill the reflector so i had an idea of putting the circuit board like this...

So any idea u can give me on design, don't think i am greedy

Also need some help to drill, how to drill the reflector if i think of doing so..!!

If you decide to use a circuit board then good. A circuit board will be like a blank canvas - plonk the LEDs where you see fit! Just cut the board in proper shape such that it can be sandwiched between the reflector and the lens.

And you drill using a drill, duh!

I have an electric drill at home so not a problem for me. Electricians usually have them.

Shreeni0403 · 05-14-2009, 11:04 PM

Quote:

Originally Posted by abhijeet080808

If you decide to use a circuit board then good. A circuit board will be like a blank canvas - plonk the LEDs where you see fit! Just cut the board in proper shape such that it can be sandwiched between the reflector and the lens.

i asked for pattern

Quote:

And you drill using a drill, duh!

I have an electric drill at home so not a problem for me. Electricians usually have them.

ashish_500bullet@yahoo.co · 05-15-2009, 12:38 AM

hii guys
its a god job,,get some more ideas to envent new designs and enginering,,,.

Serpentkillers · 05-15-2009, 01:39 AM

@ abhijeet -- Absolutely Fantastic Job Man... Looks really Cool. Did u get the Avenger Part & howz the result?

abhijeet080808 · 05-15-2009, 02:32 AM

Quote:

Originally Posted by Serpentkillers

@ abhijeet -- Absolutely Fantastic Job Man... Looks really Cool. Did u get the Avenger Part & howz the result?

No man!

Service center guys are saying it would take upto a month. So waiting! Anyways 60/55W bulb is supported on my bike. So, not so big prob. After getting the coil, hopeful of going upto 100/90W.

@shreeni
I gave a pattern in the prev post. Modify it as per your liking!

Shreeni0403 · 05-15-2009, 10:36 AM

Quote:

Originally Posted by abhijeet080808

@shreeni
I gave a pattern in the prev post. Modify it as per your liking!

Okay thank you
Going to get the needed items now

Shreeni0403 · 05-15-2009, 09:08 PM

Done with the soldering stuff. I am not that happy with the result
Will be uploading the pix after i fit it to bike.

Shreeni0403 · 05-15-2009, 11:55 PM

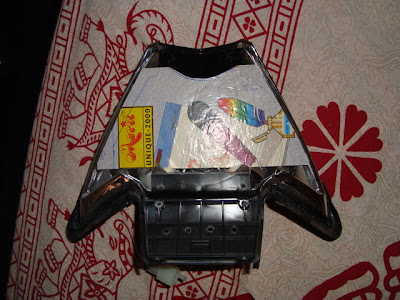

Here are the pics before fitting back.

LED Arrangement

Brake Lights

Parking Light

Without glass when LED's ON

I am not happy by the way it looks when the glass is put, the light emitted is glared completely

abhijeet080808 · 05-16-2009, 01:52 AM

It is a good job but the holes are not uniform. Also the LEDs are not aligned properly. Regarding the brightness, did you use 8mm LEDs or are they 5mm LEDs? Also, AFAIK newer uni has transparent glasses. Can you get them?

Shreeni0403 · 05-16-2009, 09:06 AM

Quote:

Originally Posted by abhijeet080808

It is a good job but the holes are not uniform. Also the LEDs are not aligned properly. Regarding the brightness, did you use 8mm LEDs or are they 5mm LEDs? Also, AFAIK newer uni has transparent glasses. Can you get them?

I couldn't get 8mm LED's

All Uni's have same glass, it has 2 glasses. 1 RED above that 1 White.

The pics i have shown are with White Glass only.

Regarding alignment of LED's, its not easy as placing on circuit board. The back part has different shapes and according to that the alignment is varying

I think i will put a circuit board and proceed again
