    Default Installing a Cyclocomp on your Motorcycle

    Installing a Cyclocomp on your Motorcycle

    While Riding, have you ever missed a clock on your Bike's console?
    Riding with gears makes it even more difficult even if you wear a watch
    on your wrist.

    Though a few Bikes comes with an onboard clock, thats only a handful.

    For those who have not came across a Cyclocomp, its a digital device with small dimensions(1"x1" for the smallest ones) which work on magnetic pulses. the set-up is quite simple with a magnet fitted on the spoke and a sensor fixed to front suspension fork facing the magnet. with every rotation of the wheel, the magnet will pass the sensor, and depending on the difference between two pulses, the wheel rpm will be calculated. based on this the display(commonly divided into two parts) will show the speed in kmph(or mph depending upon your choice) and multitude of other readings including TIME
    cheap Cyclocomps are available off ebay.com for $4-6 and can be

    installed on Motorcycles within 30mins without any tools.

    A typical Cyclocomp package includes
    1. The Cyclocomp
    2. A sensor and a Cyclocomp mount connected by a cable
    3. A magnet
    4. 4 cable ties.

    There are installing instructions at the back of the pack but let me make them simple for you.

    The thing is made for Bicycles so a few extra things like Superglue or Araldite, a pari of scissors and a few long cable ties will help.


    STEP 1: Mark the positions where you want to fix the magnet and the sensor. the magnet is weak so you have to make sure there is a gap of 15mm(max) when it passes the sensor during wheel rotation. if you want more gap, you can use any stronger magnets(search for Rare Earth magnets, they are small in size and are very strong). Magnets from small tweeters(speakers) will also do. Just make sure that while rotating nothing touches anywhere.

    I had installed the sensor on the left fork when viewed sitting on the Bike


    STEP 2: After marking, its time to fix the magnet. In my case, I used the supplied Magnet and fixed it to the wheel hub with Araldite since fixing it on the spkoe will have too much gap for the sensor to take any readings.


    STEP 3: Now its time to fit the sensor. they provide small cable ties to fit the sensor to the small dia Bicycle forks and their length is not sufficient for Motorcycle forks. Solution: longer cable ties
    Simply align the sensor facing the magnet and tighten the cable ties. cut off the unwanted tie piece once done.

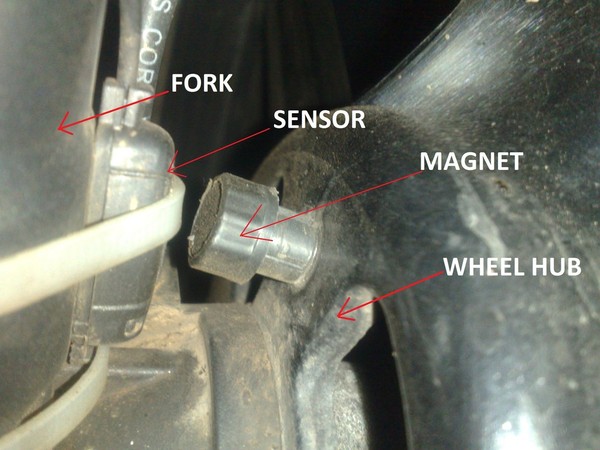

    As viewed from from the front of the Wheel/Bike

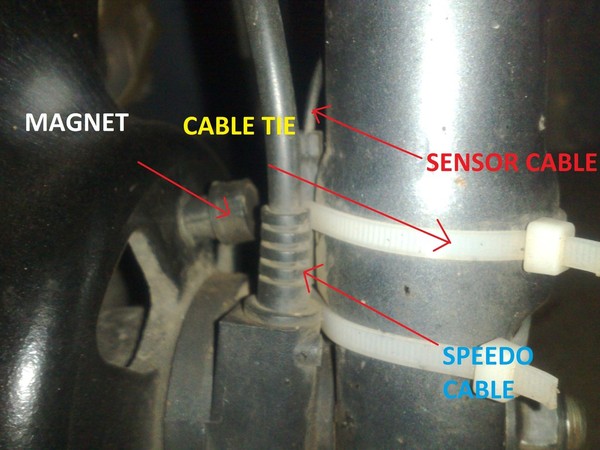

    As viewed from back of the Wheel(from the Engine side)

    STEP 4: on the other end of the Sensor cable, there is the mount for the Cyclocomp. This can be fitted very easily with the cable ties provided on single piece handle bars. the mount even have grooves for cable ties to accomodate. But its not that easy on clip-ons. one has to find a suitable place on the small clip-ons to fit it or choose another place altogether according to his/her choice. I found some space near the LHS switch gears and fitted the sensor mount there.

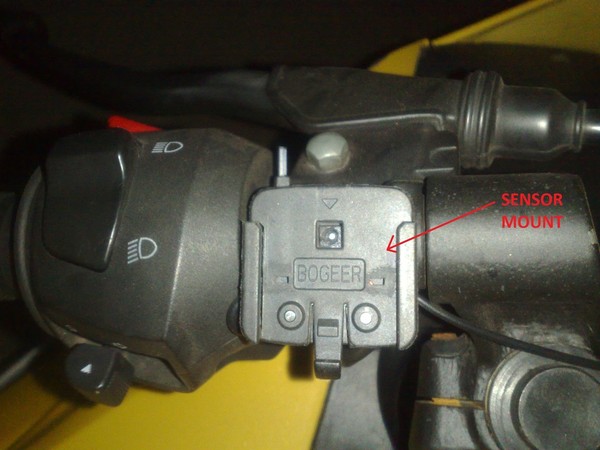

    Sensor mount fitted on the clip-on with cable ties


    STEP 5: Measure the outer dia of the front tire. with that calculate the circumference of the Wheel and feed it to the Cyclocomp. Put it on the mount, start the Bike, slot onto first and move ahead

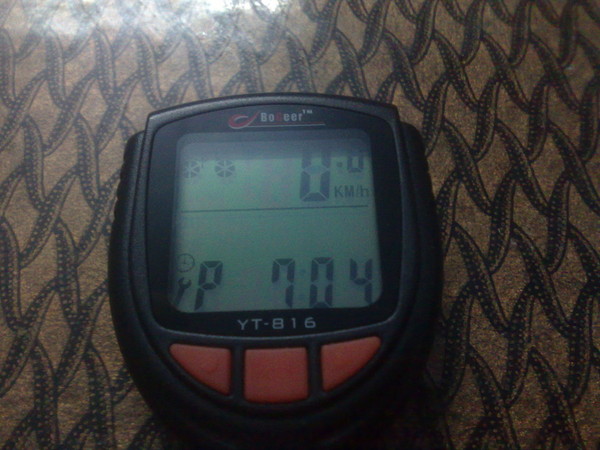

    The Cyclocomp

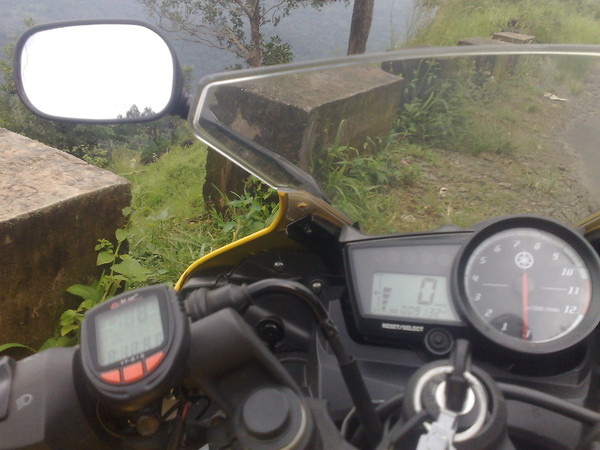

    Installed and on the roll


    ADVANTAGES:

    1. Easy to install
    2. Time is displayed which is much needed
    3. Other Goodies like, speed, max speed, avg speed of a trip, tripmeter, wheel rpm, etc are displayed
    4. Can be removed easily and put in pocket when not Riding and fitted back easily on the mount
    5. Runs on its own battery(button type) which is easily available in Watch shops
    6. Looks Cool


    DISADVANTAGES:

    1. May not show exact readings ad Bike speedo(speed), also Bike speedos are known to have some errors, maybe Cyclocomp has too.
    2. Not guaranteed waterproof on cheaper models but can withstand light rains.
    3. Not backlit on most models.

    Search for Cyclocomp or Bicycle Speedometer in ebay.com and you will get many options to choose from.

    Prior to installation and purchasing, I discussed the Idea with fellow XBHPians which helped me a lot. Special thanks to all. the discussion thread is http://www.xbhp.com/talkies/bicycles...computers.html



    RIDE SAFE
    Last edited by Prakritij; 11-28-2011 at 05:32 PM.

  2. #2
    Super Moderator Noor's Avatar
    Join Date
    Mar 2003
    Location
    Mumbai, Maharashtra, India.
    Posts
    2,324
    Mentioned
    5 Post(s)
    Tagged
    0 Thread(s)

    Default

    DIY approved
    Happiness is finding you have another Gear left....

    Join xBhp On


  3. #3
    nin
    nin is offline
    Rusted nin's Avatar
    Join Date
    May 2010
    Location
    Mumbai
    Posts
    2,129
    Mentioned
    5 Post(s)
    Tagged
    0 Thread(s)

    Default

    Good find there !

    Are such cyclocomps available in the local market ?
    A very good and safe biker not only because he can pop up either of the wheels,scrape his knees on a corner or go fast and make it look stylish but because he very well knows his limits and capabilities and has the patience to learn about others and ride safe ! :)

    [SIGPIC][/SIGPIC]

    My Saddlesore Log : The 1st Saddlesore in India on a 135cc

  4. #4
    Rusted Prakritij's Avatar
    Join Date
    Jan 2010
    Location
    Dibrugarh
    Posts
    683
    Mentioned
    1 Post(s)
    Tagged
    0 Thread(s)

    Default

    You can find some in High-end Bicycle shops and even in some Malls which also sells sports Goods but not sure if you will get the cheap Rs.400-500/- ones. try ebay


    @Noor: Thank You for the Approval



    RIDE SAFE
