  • #1

    Honda CBR 600 RR

    Manufacturer : Honda ( http://www.hondamotorcycles.com )
    Engine Type : Liquid Cooled Transverse Four
    Displacement : 599 cc
    Maximum Power : 116.5 PS @ 13,000 rpm
    Valve Arrangement : DOHC 16 Valves
    Bore & Stroke : 67 * 42.5 mm
    Compression Ratio : 12:1
    Carburation : Electronic Fuel-injection
    Clutch : Wet Multiplate
    Transmission : 6 Speed
    Front Suspension : 45mm telescopic,120 mm wheel travel,adjustment for preload,compression and rebound damping
    Rear Suspension : One Damper,120 mm wheel travel,adjustment for preload,compression and rebound damping
    Front Brake : 2 Four Piston Calipers,310 mm discs
    Rear Brake : Single Piston Caliper ,220 mm disc
    Front Wheel : 3.50 * 17in ;Cast Aluminium
    Rear Wheel : 5.50 * 17in ;Cast Aluminium
    Front Tyre : 120/70 * 17in Michelin Pilot Radial
    Rear Tyre : 180/55 * 17in Michelin Pilot Radial
    Wheel base : 1390 mm
    Seat Height : 820 mm
    Fuel Capacity : 18 litres
    Dry Weight : 169 kg

    Last but not the least.....
    It's My Dream Bike [^]
    It's replicated from the all conquering HONDA RC 211V (V5,990CC)
    Guys wht do u think abt this babe
    This bike has a league of it's own even while being in the middle heavyweight category..
    I just love this bike i don't know why
    i have so many pictures of this Bike
    and as much videos as i cud get through Kazaa,http sites.
    Wht do u say ????
    Feel The Fear And Do It Anyway !!
    Tags: None
  • #2
    Hey the babe sure is HOT. the only thing that worries me is its fuel capacity.. its just 18ltrs i.e. equalt to that of pulsars.. i mean see the power & cc diff iam sure it will be gulping more fule than my 180 & by that standard its range with full tank will be quite less
    Racing Throttle Response

    Comment

    • #3
      whats the diff between this and CBR 600R?
      DoN\'t LivE tO DiE, dIe tO LiVe

      Comment

      • #4
        the CBR is good, but bro.. compared to the yamaha R6, its nothing. i think they could'ce done a better job in the ram air intake on the sides... its look a lil... i dunno...awkward, but if it was done like the 2004 yamaha R1, then thas what i call beauty. but still the CBR is pretty good

        Comment

        • #5
          quote:Originally posted by Ron J

          the CBR is good, but bro.. compared to the yamaha R6, its nothing.
          how come? in terms of performance and handling?
          DoN\'t LivE tO DiE, dIe tO LiVe

          Comment

          • #6
            Here are the pics......

            Source:http://www.hondamotorcycles.com



            You will pay for your sins. If you have already paid, please disregard this message.

            Comment

            • #7
              looks very much like the '04 CBR 1000RR
              DoN\'t LivE tO DiE, dIe tO LiVe

              Comment

              • #8
                Some more pics

                Honda CBR600 RR frame


                Honda CBR600 RR engine


                Without the Body panels

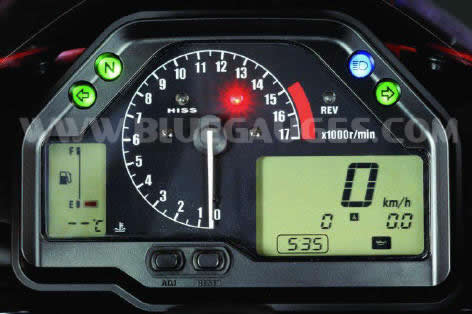

                Honda CBR600 RR Dashboard


                Dashboard Close-up
                You will pay for your sins. If you have already paid, please disregard this message.

                Comment

                • #9
                  Hi XBHPIANS,How is everyone doing ?

                  RONJ,man wht u said is,i think a different point of view only.

                  Pranay,the main differences between the old CBR 600 and the CBR 600 RR are :

                  1)Looks are more agressive and racier.
                  2)Seat is 70mm more forward than the old CBR.(better,prcise handling)
                  3)2 set of fuel injectors for different speeds (low and high)
                  4)front brake disks r increased in diameter frm 296mm to 310mm.
                  5)The frame is different frm the previous bike as well.Allmost Same as on Rossi's RC211V.Process of casting is different.
                  6)Sinlge underseat exhaust copied frm honda's RC211V made for Rossi.
                  7)CBR 600 RR uses a unit Pro-Link rear suspension system to compress the shock using only the swingarm,previously the shocks were fed right into the frame of the bike.

                  That's all i can tell u abt it.
                  Guys,have i missed anything ???
                  Feel The Fear And Do It Anyway !!

                  Comment

                  • #10
                    Hey sabby gr8 pics man
                    Racing Throttle Response

                    Comment

                    • #11
                      Hey Sabby,
                      thanx a lot man,
                      thanx for backing up the topic with awesome pics of the bike.
                      really good pics.
                      nice job.
                      Keep it up bro...
                      See yaa.
                      Feel The Fear And Do It Anyway !!

                      Comment

                      • #12
                        thxs techno and shantu...
                        You will pay for your sins. If you have already paid, please disregard this message.

                        Comment

                        • #13
                          Hey guys saw one on the road yesterday in Bangy! It was a bright red one! The thing looked damn sexy and the exhaust man thats one beautiful rear! You have to see it in flesh to see how sexy the bike looks.
                          LIVE LIFE FULL THROTTLE!!!!!! VROOOOOOM!!!!

                          Comment

                          • #14
                            the instrumentation looks pretty cool!!!!
                            http://img.photobucket.com/albums/v1...ssiflag222.jpg

                            Comment

                            • #15
                              just check this link out and see the specs at d end of d page cbr's mileage is 23 [:0][:0][:0][:0][:0][:0][:0]http://world.honda.com/news/2004/2040331.html
                              http://forums.cbrworld.net/Themes/de...leicons/12.gif

                              Comment
