  • #31
    Re: Yamaha fz16/fazer engine oil & oil filter change

    Originally posted by hotshot1986 View Post
    Regarding the oil filter change: Once replacing the oil filter , the engine oil to be added is 1.2L(1L and 200ml)and not 1L from the service manual,And some might wonder why,for those who have Fazer or FZ when the drain the oil through the drain bolt and even after the oil dripping is stopped you can notice the oil will be pouring once you open the oil filter cap(sorry of long typing).

    since some of the oil gets stored in the oil filter chamber,but in case of periodic maintenance (changing oil without changing oil filter) you need to add 1L and not 1.2L(1Land 200ml).


    And regarding the recommended oil for FZ and Fazer is 20W50 OR going for xxW50 (where xx is < 20 ie: 15W50,10W50 etc)
    But in the Old manual of Yamaha Fz-16/ Fz-s (november 2011) which i have with me,, it says, 1.1L with oil filter replecement and 1 L without oil filter replecement, & Grade is given as optional (20w-40 or 20w-50).
    Royal Enfield Bullet Standard 350cc 1989, Bajaj Avenger 200-2009, Pulsar 200 NS 2015.

    Comment

    • #32
      Re: Yamaha fz16/fazer engine oil &amp; oil filter change

      And as far as soaking the oil filter in engine oil is absolutely not recommended since there will be excess oil in the chamber = 1.2L+soaked oil filter(may be 50 to 100ml) which could result in excess oil pressure in the chamber.And the oil seals cannot withstand excess oil pressure for a prolong period.

      But I would recommend pushing the kicker lever several times while keeping the red switch on throttle side off.

      For those who don't have a kicker can unplug the spark plug cable and push the self start this could rev the engine with out turning it on


      Sorry for putting two posts, since everyone hates one long post

      Comment

      • #33
        Re: Yamaha fz16/fazer engine oil &amp; oil filter change

        Click image for larger version Name: 301061_210783468990627_1717706611_n.jpg Views: 1 Size: 43.1 KB ID: 1845076
        This is what My Fz manual says
        1.1 L with oil filter replacement.
        Royal Enfield Bullet Standard 350cc 1989, Bajaj Avenger 200-2009, Pulsar 200 NS 2015.

        Comment

        • #34
          Re: Yamaha fz16/fazer engine oil &amp; oil filter change

          I was just saying that is was mentioned in the service manual of FZ

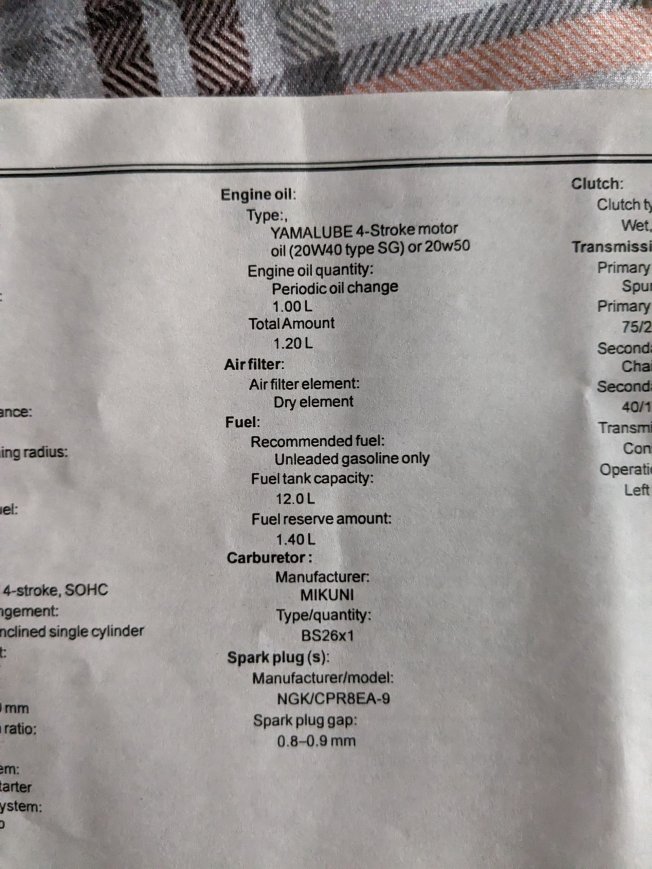

          Click image for larger version Name: ym specs copy.jpg Views: 1 Size: 63.3 KB ID: 1845199

          Which translate to (you can try it on the google translate)

          Engine Oil


          Wet sump lubrication system
          SAE Type 20W50
          Recommended grade engine oil
          Engine Oil quantity
          YAMALUBE (Grade-SG)
          Periodic change 1.00 L
          Total change 1.20 L

          Whether you can follow service manual or the owner's manual .its upto you bro

          Comment

          • #35
            Re: Yamaha fz16/fazer engine oil &amp; oil filter change

            Regarding the owner's and the service manual any of this could be wrong ,So I would suggest following the dipstick on the oil cap to ensure the correct amount of oil.

            It is the safest.

            Comment

            • #36
              Re: Yamaha fz16/fazer engine oil &amp; oil filter change

              Step by Step Video of the same :

              https://youtu.be/lGtGBHEa5WY
              Exploring South India
              Ride to Dandeli
              Kuntala waterfalls at its best
              Father & Son ride to Nasik
              Exploring South India -2
              Hyderabad-Goa-Maharashtra

              Comment

              • #37
                Re: Yamaha fz16/fazer engine oil &amp; oil filter change

                Originally posted by bobisbacktorock View Post
                Step by Step Video of the same :

                https://youtu.be/lGtGBHEa5WY
                Can you please say what that machine to remove the 8 mm bolts is called, its price and whether it can work on battery? TIA !

                Comment

                • #38
                  Re: Yamaha fz16/fazer engine oil &amp; oil filter change

                  One important thing while doing oil change is that the washer between the drain nut and body needs to be changed every alternate times. The washer actually gets deformed every time we tighten and is the primary reason for oil leaks.

                  Comment

                  • #39
                    Re: Yamaha fz16/fazer engine oil &amp; oil filter change

                    Originally posted by ashwanth.r View Post
                    Can you please say what that machine to remove the 8 mm bolts is called, its price and whether it can work on battery? TIA !
                    there you geo :
                    BLACK+DECKER CD121K50 12V 10mm 1.3 Ah Li-ion Cordless Drill Machine Driver with Multi-Torque Clutch, Keyless Chuck & 50 Accessories Kitbox for Wood, Metal & Concrete, 1 Year Warranty, ORANGE & BLACK : Amazon.in: Home Improvement
                    https://www.amazon.in/Black-Decker-CD121K50-Cordless-Accessories/dp/B00R4R1DL2/ref=sr_1_4?ie=UTF8&qid=1518304772&sr=8-4&keywords=black+and+decker+screwdriver
                    BLACK+DECKER CD121K50 12V 10mm 1.3 Ah Li-ion Cordless Drill Machine Driver with Multi-Torque Clutch, Keyless Chuck & 50 Accessories Kitbox for Wood, Metal & Concrete, 1 Year Warranty, ORANGE & BLACK : Amazon.in: Home Improvement


                    Originally posted by Pinak-the stunner View Post
                    One important thing while doing oil change is that the washer between the drain nut and body needs to be changed every alternate times. The washer actually gets deformed every time we tighten and is the primary reason for oil leaks.
                    True. I will be covering that in a video.
                    Exploring South India
                    Ride to Dandeli
                    Kuntala waterfalls at its best
                    Father & Son ride to Nasik
                    Exploring South India -2
                    Hyderabad-Goa-Maharashtra

                    Comment

                    • #40
                      Originally posted by Touseef Ahmed Mohammed View Post
                      Re: Yamaha fz16/fazer engine oil &amp; oil filter change

                      [ATTACH=CONFIG]100348[/ATTACH]
                      This is what My Fz manual says
                      1.1 L with oil filter replacement.
                      The image is not opening, I've lost my manual. I have a Fazer V1, could you please confirm, 1.1l with oil filter & 1l without it?

                      Attached Files
                      Last edited by VVS Mann; 10-04-2023, 09:01 AM.

                      Comment

                      • #41
                        Originally posted by blkhrt View Post
                        CHANGING FZ16 ENGINE OIL AND OIL FILTER
                        1.remove the bolt under the engine and drain the oil in a oil pan


                        2.Open oil filter case screws using a tool


                        3.oil filter will be exposed


                        4.remove the old oil filter


                        5.Clean the oil filter chamber with a clean cloth


                        6.place in the new oil filter


                        7.close the oil filter chamber. make sure the o-ring fits in the groove properly


                        8.put the bolt under the engine back in its place and pour in the new engine oil.

                        I have to change my engine oil+oil filter, would use Motul 15w50 semi synthetic. I'm not sure about the quantity, if you could clarify.

                        Comment

                        • #42
                          According the manual I found on ManualLib website for FZ16, periodic oil change is 1 L and total okl capacity is 1.2 L. It appears like you'll be adding 200 ml of extra engine oil on oil filter change.

                          Checking The Engine Oil Level - Yamaha FZ 16 Assembly Manual [Page 33]
                          https://www.manualslib.com/manual/1285382/Yamaha-Fz-16.html?page=33
                          Yamaha FZ 16 Manual Online: Checking The Engine Oil Level. 1. Stand the motorcycle on a level surface. TIP: • Place the motorcycle on a suitable stand. • Make sure that the motorcycle is upright 2. Start the engine, warm it up for several minutes, and then turn it off. 3. Remove...
