    INSTALLED PROJECTORs on MY UNICORN

    As many know, i was working on installing projectors on my Unicorn couple of days.
    Had showed a sample picture earlier in a thread here. Well that was just a sample.

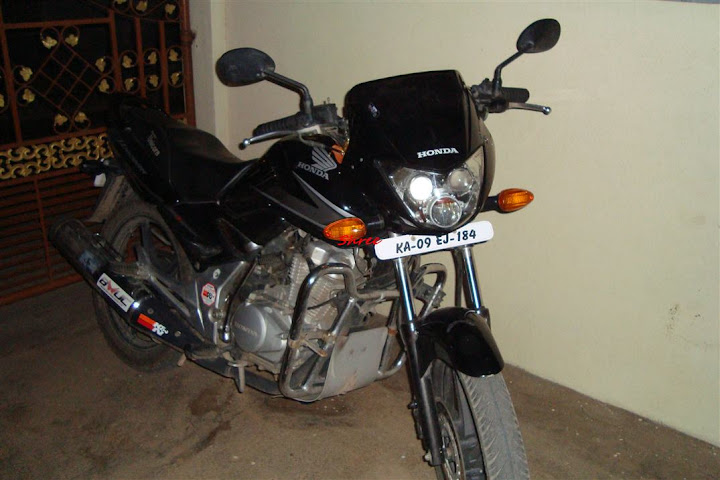

    Today I am done with the final (almost) setup on my bike. Sticker work is pending to give a neat look after that (probably tomoro) will upload pics during day time.

    I have installed 2 projectors of skoda and 1 of Benz.

    Skoda's contain H3 55w Halogen and Benz's contain 100w H1 Halogen.

    Regarding wiring, as my bike was running on DC i have connected 1 skoda's to low and benz's to high beam.
    The other skoda's is running on AC (left out wire after DC conversion).

    Cost involved.

    Projector - 1200rs
    Unicorn cowl + Reflector - 400rs (in junk, i didn't want to ruin the stock)
    Clamps + Headlight cable - 200rs
    Silicon Gel - 120rs
    Time spent - Priceless

    I had thought that Unicorn's old headlight cowl will be straight fit for new ones but the bracket that holds the new cowl is different so had to get custom clamps as well.

    Well now I have to save for HID's

    IMHO who ever planning to put projectors, unless you plan to put HID don't opt for projectors.






    THINGS PENDING...

    2 X 35w H3 HID's
    APE's RR Unit for complete DC conversion.

    Hope I do it soon.

    Tags: diy, projector, unicorn
  • #2
    Topic Approved.

    Brilliant job! I am sure these would KILL the darkness, especially during the night rides, on the highways. How effective are they? And also, are these projectors of the P220?
    :)

    Comment

    • #3
      Originally posted by Aryan View Post
      Topic Approved.

      Brilliant job! I am sure these would KILL the darkness, especially during the night rides, on the highways. How effective are they? And also, are these projectors of the P220?
      Hi Aryan,
      Thanks for the approval.

      The projectors are from Skoda and Benz. They are killer for on-coming vehicles (specially the truckies) but road clearance for me is not very good right now because of the bulb am using is not glowing to its max.

      What i feel is , projectors without HID is waste

      Comment

      • #4
        lovely job there...!!!


        But, how do you think the 100W bulb would draw enough power from the battery? Even if it does, how long can it sustain on the battery?

        Did you make any mods to that section as well?

        Comment

        • #5
          With the Benz projector with a HID, are you sure it wouldnt be an overkill for the battery to handle??? and are the Skoda's n Benz's projectors so cheap ???? did you get the genuine stuff from a dealer or any after market accessory parts shop?
          You can take the ride away from me but you cannot take the rider out of my soul.........

          Comment

          • #6
            ^^+1

            is the projector of skoda and benz so cheap???
            you wanna know me?

            COME RIDE WITH ME!!!!

            Comment

            • #7
              Originally posted by motormania View Post
              With the Benz projector with a HID, are you sure it wouldnt be an overkill for the battery to handle??? and are the Skoda's n Benz's projectors so cheap ???? did you get the genuine stuff from a dealer or any after market accessory parts shop?
              Junk yard hunting my friendThe junk yard is the place for hard core enthusiasts
              Good going shree,can't wait to see the projectors with the H.I.D's
              Socha Toh Locha.

              Comment

              • #8
                Cool

                Gr8 Job dude..
                Faster, faster, faster, until the thrill of speed overcomes the fear of death.....[:)]

                Waiting for a job to own a kawasaki ninja......!

                Comment

                • #9
                  Hmm.. not too bright right now, but I m sure HIDs will take care of that. Also, ensure proper placement of the HID bulb. These opticals are very finicky about that.
                  Your biking tells a lot about the person you are!

                  Comment

                  • #10
                    Thanks guys..

                    Originally posted by abhijeet080808 View Post
                    Hmm.. not too bright right now, but I m sure HIDs will take care of that. Also, ensure proper placement of the HID bulb. These opticals are very finicky about that.

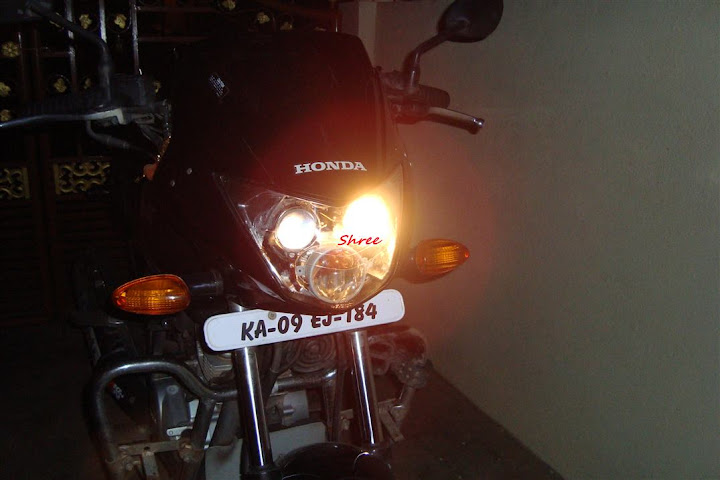

                    CAMERA SETTING changed else i could see nothing mre than WHITE WALLPAPER

                    Originally posted by HydBiker View Post
                    lovely job there...!!!
                    But, how do you think the 100W bulb would draw enough power from the battery? Even if it does, how long can it sustain on the battery?
                    Did you make any mods to that section as well?
                    Not yet touched the electricals yet but will be doing soon. Till date i was already using Osram NB i.e 55/60 and had no problems with it. So 55w bulb shouldn't be a problem. 100w even i have doubt so won't be using regularly.

                    Originally posted by velociraptor13 View Post
                    Junk yard hunting my friend The junk yard is the place for hard core enthusiasts
                    Good going shree,can't wait to see the projectors with the H.I.D's
                    +++++1


                    Originally posted by motormania View Post
                    With the Benz projector with a HID, are you sure it wouldnt be an overkill for the battery to handle??? and are the Skoda's n Benz's projectors so cheap ???? did you get the genuine stuff from a dealer or any after market accessory parts shop?
                    What ever the projector is but the HID wattage is same na . Btw i wont put HID's in Benz projector as it doesn't ve any shield, it will kill the oncoming vehicle. It is already a overkill with 100w bulb, cant imagine HID in it.

                    Comment

                    • #11

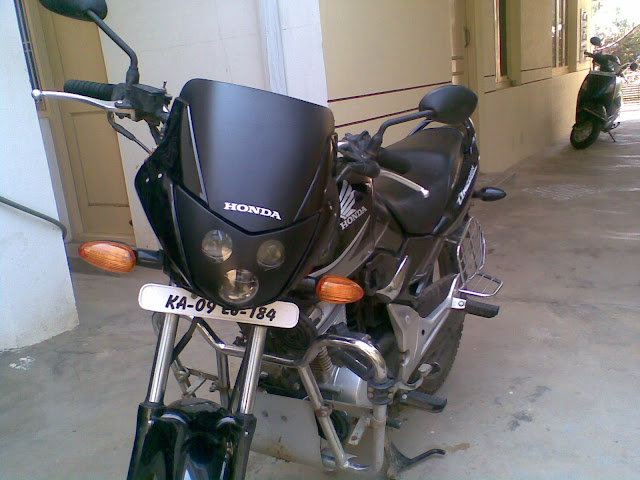

                      One More Picture After Sticker Work

                      Comment

                      • #12
                        Great!

                        Now the bike looks neat & the job done is awesome!
                        sigpic
                        Ride Safe!!

                        Comment

                        • #13
                          Keep only the big projector. Smoke out the 2 smaller ones too. It will look kickaS$$!

                          And hey, get clear lens indicators!
                          Your biking tells a lot about the person you are!

                          Comment

                          • #14
                            Originally posted by abhijeet080808 View Post
                            Keep only the big projector. Smoke out the 2 smaller ones too. It will look kickaS$$!

                            And hey, get clear lens indicators!
                            I have clear lens indicator with stock. As this is old type headlight cowl, used old type lens

                            Comment

                            • #15
                              hey man.. it looks awesome..!!

                              could you post some snaps of how they look at night, and also the snaps of the light throw from the individual projectors.
