Let there be Light : Bike Lighting, HID etc

[drvmtm]

[QUOTE=Calibre;435858]nice pics bro
even im thinking of changing my FZ light to bixenon after reading all this...
but how much wil they cost me??[/
bro its best u put up a 4300 k bixenon,
just get in touch with navnish navnish .
tell him you need a bixenon that he gave me for my pulsar 180,its damn nice bro,comes with warranty also.

[drvmtm]

USing a bixen projector u can expect a nice low beam spread provided u should've a bigger lens, but dont expect more in High beam mode. Its not that impressive as the normal reflectors. Glare sheild is positioned too low and its not opening fully at high beam mode. Like Drvmtm said, there r dedicated high beam lenses but the budget will go up beyond ur imaginations and most of these dedicated lenses are manufactured by reputed cos like Hella, Bocsh etc. and falling into the range of $400 for a pair. Is that worth and viable to fit two lenses in a bike without a proper fairing.

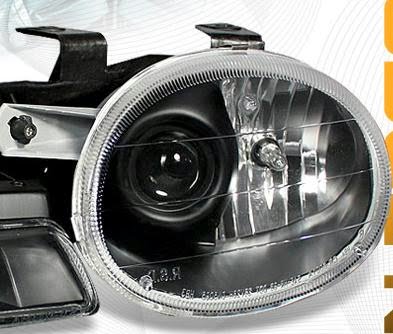

Hows this idea? Its a Dodge sealed beam with a lens for LB and reflctor for HB.

+1 to that,sajjit is it possible to get these type of projector/reflecter combo in a 7 inch seal beam setup,do u feel me bro?

[Calibre]

bro its best u put up a 4300 k bixenon,
just get in touch with navnish navnish .
tell him you need a bixenon that he gave me for my pulsar 180,its damn nice bro,comes with warranty also.

sure.. ill get in touch wit him in few days... thanks bro...

[Shreeni0403]

+1 to that,sajjit is it possible to get these type of projector/reflecter combo in a 7 inch seal beam setup,do u feel me bro?

I wish the same. I am sick of twin eyes on my bike !!

[N-o-v-i-c-e]

On the fz the bi xenons work perfectly. the spread of light is also too good. Let me know if you want a bixenon. I just have a pair left.

Hi navnish....so i assume that the recommended bi-xenon for FZ by you
is a 35 watt one....rite?????

I have a silly(maybe) question.....how does the battery handle the huge amount of power required for the HID's coz i read in this thread itself
that it takes some time to start....

And also how would the battery fare in city usage coz i read that we shudnt change from lo to hi and vice versa frequently(like using the pass switch)???

[drvmtm]

Yamie is having a quite robust charger

hi navnish....so i assume that the recommended bi-xenon for fz by you
is a 35 watt one....rite?????

I have a silly(maybe) question.....how does the battery handle the huge amount of power required for the hid's coz i read in this thread itself
that it takes some time to start....

And also how would the battery fare in city usage coz i read that we shudnt change from lo to hi and vice versa frequently(like using the pass switch)???

fz s charging system is quite robust,even it can pull 55/60 halo bilb without much hiccup,specially if the rpm is maintained over 3000rpm.
Yes you are correct ,the hids take up a huge chunk just at the start 3to 4 sec max,then it steadily declines and set in the region of 3 to 3.5 amps. The power that is lost at the begaining is then refilled by the charging section gradually,just as the starter takes a huge power at the starting but the charger fills it up later
changing to hi-low in a bi xenon provided by navnish is a childs play,the product is already built with a capacitor inside so while changing there is no switching off of the hid ,just the bulb moves,seamless,danger free,no probs.

[NH4]

Philips Extreme Power in Pune

Hi Guys,

Can you please let me know where can I get Phillips Extreme Power bulb in Pune? What is the price range for this bulb?

I am looking for this bulb for my Pulsar 180 UG4, and I am planning to install it only for Low-Beam. (I almost never ride with high-Beam). Are there any specific grades (like H4??) that I need to look for?)

It would also be great if someone can confirm that I actually do not need any modifications needed on my P180 to fit the extreme power bulb. The electricals are all DC 12V.

Any pointer regarding the above questions are highly appreciated.

[drvmtm]

Ans in bold

Hi Guys,

Phillips Extreme Power bulb What is the price range for this bulb?ANS-800-1000 RS PAIR

I am looking for this bulb for my Pulsar 180 UG4, and I am planning to install it only for Low-Beam. (I almost never ride with high-Beam). Are there any specific grades (like H4??) that I need to look for?)ANS-NOT POSSIBLE,YOU NEED A H4 BULB WHICH IS A BULB TYPE COMPRISING OF HIGH AND LOW BEAM IN A SINGLE BULB!

It would also be great if someone can confirm that I actually do not need any modifications needed on my P180 to fit the extreme power bulb. The electricals are all DC 12V. ANS-YOU CANT USE A PHILLIPS X TREAM POWER AS THE BULBS RATING IS 55/60 WATT,AND YOUR BIKE SUPPORTS ONLY 35 WATT BULBS,ALSO YOUR BIKE IS HAVING A BCU AND I ASSUME UNDER WARRANTY SO DONT EVEN THINK OF MODIFYING ELECTRICAL S.
HEARTBROKEN? YOU SHOULD BE!
YOUR ONLY OPTION IS TO GO FOR HID BIXENON 4300K,
LIGHTS BETTER THEN A PHILLIPS,A STRAIGHT FIT,NO SLICING DICING OF WIRES AND DOSENT VOID WARRENTY,ALSO GIVES A LIGHT OUT PUT AT LEAST 3 TIMES BETTER.

Any pointer regarding the above questions are highly appreciated.

...............................

[sajjt]

+1 to that,sajjit is it possible to get these type of projector/reflecter combo in a 7 inch seal beam setup,do u feel me bro?

I wish the same. I am sick of twin eyes on my bike !!

This is available in ebaymotors.com. Initially I was trying to get this but one thing pulled me back as the lens focused to inwards as it comes in pairs and each of them will focus little inwards to make a good pattern for a car. So if u want to mount this, u need to fix it by lens below and reflector wiill be on top. And I was not sure about the beam spread with this single lens, but it should be like any other lens, and more over its an OE from Dodge. All are priced under $100 w/o shipping. Add another $100 for that too. and the landed cost will be almost 12-14K incl any duties.


Here's another one

But its having integrated indicators


Only thing is its accomodating 9005-6 type bulb base, difficult to find an HID for the same.



Last one uses H7 bulb and seems to be viable for our purpose

Any takers? Here's the link
95-99 DODGE NEON CLEAR BLACK PROJECTOR HEAD LIGHTS DEPO: eBay Motors (item 360262992204 end time Jun-14-10 17:23:49 PDT)

[aarunn]

I have been a silent reader of this thread for a long long time...
Now that i want to upgrade My Karizma s stock headlight to a 4300k Bixenon HID (Got the idea from this thread itself and saw a 2007 model karizma with same set up in Navish s FB album)

My Question is shall i Fix 4300k Bixenon on my Stock karizma s set up

or should i go for a Projector for better/foused light? here is a Pic of 4300k HID bixenon projector with ANGEL eyes Priced 3100k+shipping

[navnish]

@Guys here is a pic of different HID Bulb quality's what are available in the market.

A is top of the line
B does its job
C and D are the cheapest quality what you can get.

I got this pic form the manufacturer so sharing it here.

[drvmtm]

@Guys here is a pic of different HID Bulb quality's what are available in the market.

A is top of the line
B does its job
C and D are the cheapest quality what you can get.

I got this pic form the manufacturer so sharing it here.

mail me the details mate about which we spoke earlier.

er............which one u sent me a/b/c/d ?

[navnish]

mail me the details mate about which we spoke earlier.

er............which one u sent me a/b/c/d ?

Sent you A
Infact the bulb what i sent you are the latest 2010 design .

[krUnIzZlE]

Hey Guys, i was looking at


AND

Wouldnt it be better to use something like this???? it looks a bit nicer then the ones poster above?? and its CHEAPER lol..

Here the Link:
http://cgi.ebay.com/ebaymotors/02-03-04-JEEP-LIBERTY-HALO-PROJECTOR-FOG-LIGHTS-LAMPS-/220616161005?cmd=ViewItem&pt=Motors_Car_Truck_Part s_Accessories&hash=item335dbf76ed


Can a guru explain to me how much a Decent good projector costs without the HID kit???


k thnks.

[sauravalwaysurs]

i want to change my stock headlamp in my zma-r..

i've 2 options.. 1 is osram bilux 55/60W other is osram nightbreaker..

can anyone tell me how will it affect my reflector if i install a night breaker?

& how the reflector will be affected if i install a HID??
