Let there be Light : Bike Lighting, HID etc

[drvmtm]

@abhi:d:d:d:d:d
ya its p 43,currenly doin same as a search light on my scorpios bull bar with a p 180s housing and amby seal beam with 6000k hid.:d

[lijok]

@drvmtm, sajjt: Thanks for clarifying my doubt regarding the APE RR unit.
I'll be getting the coil rewinding done this friday... Any special things to be taken care of, or to tell the guy while doing this?

[drvmtm]

@drvmtm, sajjt: Thanks for clarifying my doubt regarding the ape rr unit.
I'll be getting the coil rewinding done this friday... Any special things to be taken care of, or to tell the guy while doing this?

oem rr
use cutout for headlight
19 gauge or lower wire for rewinding
one rr only,dont complicate by retaining two rrs thinking one will help u in case of a disaster,it wont.
No switch in between coil and rr.
Dont put a 90/100 inside oem dome,it will melt.
Dont waste money buying so called premium bulbs like phillips extream power or night breaker,use good quality oem bulbs,its good enough.

happy to help.

[Shreeni0403]

1. Shree, I cant agree with u for a 6K bulb in rains, in normal weather, its really a show time with that, but on rains its not worth.

2. Still not sure about the P43t and P45t?

1. I Never said u can see road , I said if roads are good then need not see road but the vehicles/dogs/pedestrians ahead of u.

2. Sajit, u gotta read my posts properly man !! I asked why did he take p45 and do juggad instead he could go directly for p43t.

shree common man ,post the pics boss.

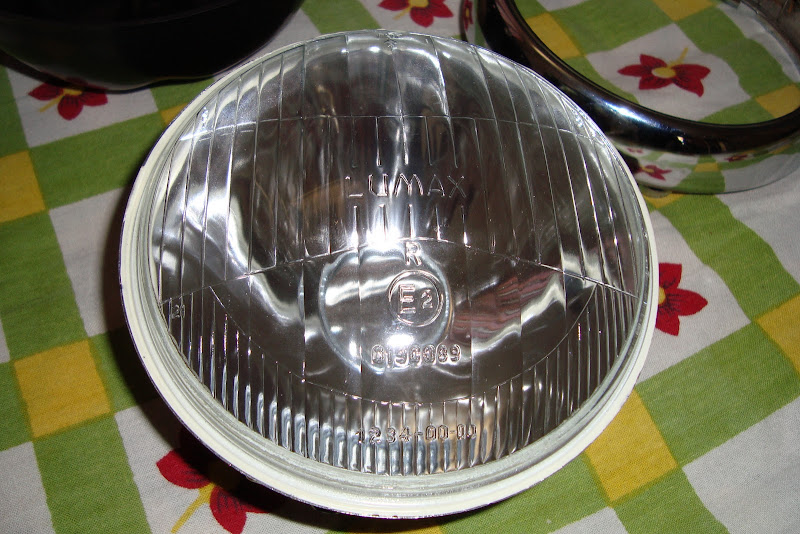

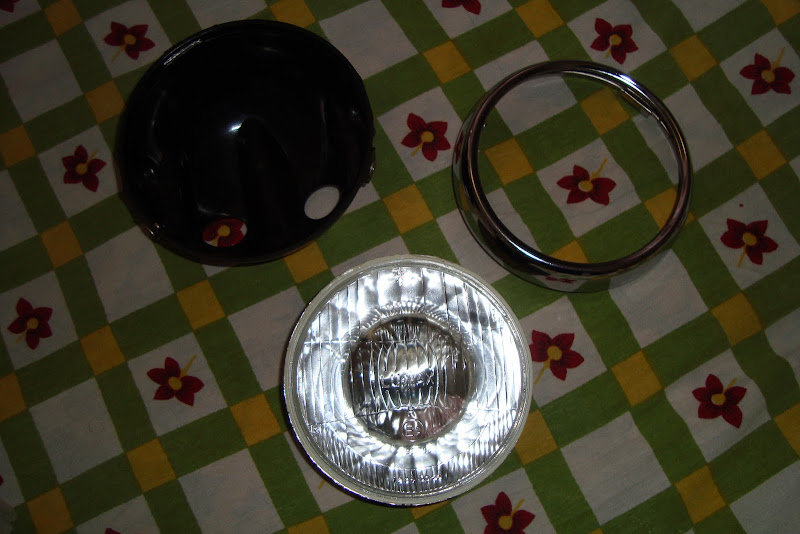

Have clicked the pics of sealed beam, but miss placed camera cable and card reader both. I shall try to get card reader today evening.

Got hold of stays, springs and other stuff - 280rs.

May be this weekend I can't spend time with bike so will have to wait for another week

BTW what silicon are you talking about ?

[drvmtm]

1.! I asked why did he take p45 and do juggad instead he could go directly for p43t.
wasnt avl here.

Have clicked the pics of sealed beam, but miss placed camera cable and card reader both. I shall try to get card reader today evening.

Got hold of stays, springs and other stuff - 280rs.

May be this weekend I can't spend time with bike so will have to wait for another week

BTW what silicon are you talking about ?

silicon bond.

[sajjt]

1. I Never said u can see road , I said if roads are good then need not see road but the vehicles/dogs/pedestrians ahead of u.

2. Sajit, u gotta read my posts properly man !! I asked why did he take p45 and do juggad instead he could go directly for p43t.


Have clicked the pics of sealed beam, but miss placed camera cable and card reader both. I shall try to get card reader today evening.

Got hold of stays, springs and other stuff - 280rs.

May be this weekend I can't spend time with bike so will have to wait for another week

BTW what silicon are you talking about ?

Shree, for a proper lighting means everything includes, road visibility, sign boards, pedastrians etc. If any one of them misses, its not good for safe driving. THats all I meant yar. Dont feel bad and njoy ur flood light rides. Let my 2 cents be there dear about bulb types, I know u r one of the best in JuGGAD works. Oh its bcz of aging man I must read twice before posting.


Silicon sealant from Pidilite is used for sealing of domes and other joints to make it water proof and its easy to pull out when u want to open. Only 45/- tube.

@drvmtm, sajjt: Thanks for clarifying my doubt regarding the APE RR unit.
I'll be getting the coil rewinding done this friday... Any special things to be taken care of, or to tell the guy while doing this?

Yes, if u want to make it full DC, then ask him to rewind the whole poles as a single coil without grounding to the body, take out the both wires with a long wire to reach atleast to the stock RR position to avoid more wire joints, else, he'll rewind with a higher guage but in stock manner(Light+Batt). I've done with the same guy, but that time I didnt've the idea of converting it to full DC, just want to upgrade the 35W to 100W, so done with both the coils. Now batt charging coil is idle now. U can ask him to do it as a single coil to squeeze out the max. Even ur batt is almost flat and hesitating to self start, ur HID will light up once ur engine is started even on a flat batt. He may not agree with u as he is not aware of this mod, when I briefed about this to him, he was not convinced and said it wont work with a bike, its all meant for 3 wheeler. So I done it myself and tried the experiment and I never made a visit to him after that.

Lijo, is it with a spare coil or with the stock? After rewinding as a single coil, u wont get any power from the coil either to batt or to light if u r not finishing the other wiring mods. So do that also else, u will be left alone in darkness while u r returning. I wont suggest that guy to do the job as there is no job perfection in wire joints and neatness too.

[lijok]

oem rr
use cutout for headlight
19 gauge or lower wire for rewinding
one rr only,dont complicate by retaining two rrs thinking one will help u in case of a disaster,it wont.
No switch in between coil and rr.
Dont put a 90/100 inside oem dome,it will melt.
Dont waste money buying so called premium bulbs like phillips extream power or night breaker,use good quality oem bulbs,its good enough.

happy to help.

Thanks brother...

Shree, for a proper lighting means everything includes, road visibility, sign boards, pedastrians etc. If any one of them misses, its not good for safe driving. THats all I meant yar. Dont feel bad and njoy ur flood light rides. Let my 2 cents be there dear about bulb types, I know u r one of the best in JuGGAD works. Oh its bcz of aging man I must read twice before posting.


Silicon sealant from Pidilite is used for sealing of domes and other joints to make it water proof and its easy to pull out when u want to open. Only 45/- tube.



Yes, if u want to make it full DC, then ask him to rewind the whole poles as a single coil without grounding to the body, take out the both wires with a long wire to reach atleast to the stock RR position to avoid more wire joints, else, he'll rewind with a higher guage but in stock manner(Light+Batt). I've done with the same guy, but that time I didnt've the idea of converting it to full DC, just want to upgrade the 35W to 100W, so done with both the coils. Now batt charging coil is idle now. U can ask him to do it as a single coil to squeeze out the max. Even ur batt is almost flat and hesitating to self start, ur HID will light up once ur engine is started even on a flat batt. He may not agree with u as he is not aware of this mod, when I briefed about this to him, he was not convinced and said it wont work with a bike, its all meant for 3 wheeler. So I done it myself and tried the experiment and I never made a visit to him after that.

Lijo, is it with a spare coil or with the stock? After rewinding as a single coil, u wont get any power from the coil either to batt or to light if u r not finishing the other wiring mods. So do that also else, u will be left alone in darkness while u r returning. I wont suggest that guy to do the job as there is no job perfection in wire joints and neatness too.

Thank you for your inputs sajjt... but the last paragraph is confusing me. I dont have a spare coil with me, so I'm getting it done with the stock. also, right now I'm not keen on going for full DC..but maybe at a later time yes...
The sentence in bold...that worries me... are you saying that this guys work is not up to the mark? What are you suggestions?

[drvmtm]

Thanks brother...



Thank you for your inputs sajjt... but the last paragraph is confusing me. I dont have a spare coil with me, so I'm getting it done with the stock. also, right now I'm not keen on going for full DC..but maybe at a later time yes...
The sentence in bold...that worries me... are you saying that this guys work is not up to the mark? What are you suggestions?

hohohohohoho HOLD ON!!!!!!!!!!!!!!!!!!!

U NEED TO CONVERT TO FULL DC FOR A APACHE 180....PERIOD!!!!!!!
WHY?ITS A TCI IGNITION SYSTEM NOTA CDI LIKE PULSYS,IF U KEEP AC /DC SETUP THE BIKE WILL NOT PERFORM WHILE ACCELERATION.
SIMPLE FUNDA GO FOR FULL DC OR DONT DO IT AT ALL.

CONFUSED? I THINK U HV MY NUMBER.
info courtesy----kaushik/kauria

[kauria]

^^ +1 right

[lijok]

hohohohohoho HOLD ON!!!!!!!!!!!!!!!!!!!

U NEED TO CONVERT TO FULL DC FOR A APACHE 180....PERIOD!!!!!!!
WHY?ITS A TCI IGNITION SYSTEM NOTA CDI LIKE PULSYS,IF U KEEP AC /DC SETUP THE BIKE WILL NOT PERFORM WHILE ACCELERATION.
SIMPLE FUNDA GO FOR FULL DC OR DONT DO IT AT ALL.

CONFUSED? I THINK U HV MY NUMBER.
info courtesy----kaushik/kauria

All right... no worries, I'll go for DC conversion... So i guess the only difference is they have to wind in a different manner than the stock winding... My worry now is if the guy I identified knows the how-to...

[drvmtm]

just ell him to wind like this CLOCK-ANTICLOCK -CLOCK-ANTICLOCK AND SO ON,FILL UP AS MUCH AS U CAN PER POLE USE 19 GAGUGE WIRE,SO U WILL GET TWO WIRES COMING OUT OF THE COIL ,JUST FEED IT TO APE RR TWO GREY AIRES AND THE YELLOW WIRE TO BATTERY AND THE BLACK IS EARTH....GOT IT? OR ELCE CALL ME

[drvmtm]

Kauria the coil will be ready tomorrow,lets hopwe for the best.

[lijok]

just ell him to wind like this CLOCK-ANTICLOCK -CLOCK-ANTICLOCK AND SO ON,FILL UP AS MUCH AS U CAN PER POLE USE 19 GAGUGE WIRE,SO U WILL GET TWO WIRES COMING OUT OF THE COIL ,JUST FEED IT TO APE RR TWO GREY AIRES AND THE YELLOW WIRE TO BATTERY AND THE BLACK IS EARTH....GOT IT? OR ELCE CALL ME

Thanks bro... will get back to you if there is anything..

Attaching few pics of the APE RR unit...

[Shreeni0403]

Thanks bro... will get back to you if there is anything..

Attaching few pics of the APE RR unit...

Great.. All the best for the mod

Dr jee..
Here are the pics...

[iamvik]

Great.. All the best for the mod

Dr jee..
Here are the pics...
