**plasmabhai** · 09-04-2012, 05:10 PM

Originally posted by nsm2285 View Post

That's a relief

. I was under the impression that the whole speedo unit is a sealed thing to avoid moisture and water condensation issues.

Have you faced this issue before? If yes, what was the approximate cost of replacing the bulb.

If anybody else have faced this issue, your input would be highly appreciated.

Well it seems like a single LED inside the unit has failed. Unfortunately it cannot be changed just like that. The terminals of the LED are soldered to the complete board and it is infact very difficult to desolder these LEDs individually without damaging the whole speedo board itself.

Thats why people who do LED backlight change mod on their consoles generally tape the original LED with black tape.

As far as service centre goes, they are going to tell you to either ignore this issue, or replace the speedo unit. As such the unit comes under warranty. If possible try and get it changed under warranty for free.

Avotron: better to show your problem to service centre and get it rectified for free under warranty. I have gotten my brake light bulb changed twice under warranty for free.

**kn8Alpha** · 09-04-2012, 06:04 PM

Changed engine oil

All,

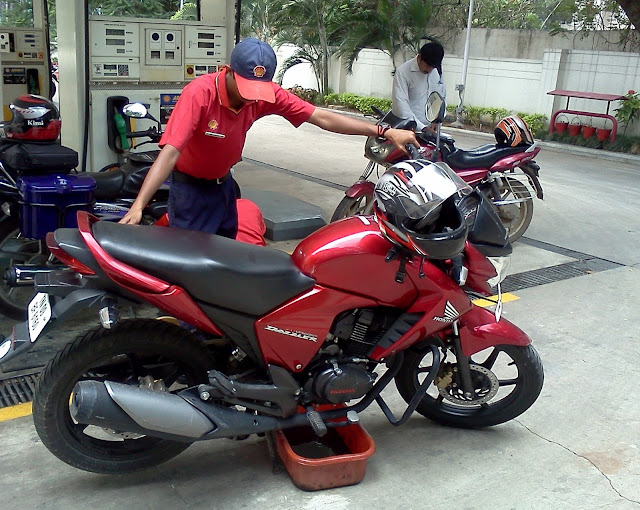

Changed oil today with Shell Advanced AX7 semi synthetic. Feels good to see all that dark slimy sludge out of the engine!

Too soon to comment about any changes in performance.

Reason for trying a semi synthetic is because it is recommended for high speed runs for prolonged time. Another reason is that it's winter now and 10w40 is a better option for cold conditions.

Done 8888km on Odo.

**phat_17** · 09-04-2012, 07:45 PM

Originally posted by kn8Alpha View Post

All,

Changed oil today with Shell Advanced AX7 semi synthetic. Feels good to see all that dark slimy sludge out of the engine!

Too soon to comment about any changes in performance.

Reason for trying a semi synthetic is because it is recommended for high speed runs for prolonged time. Another reason is that it's winter now and 10w40 is a better option for cold conditions.

Done 8888km on Odo.

Using the same oil.. and my dazzy loves that.. than Repsol Moto Rider

**plasmabhai** · 09-04-2012, 09:33 PM

Originally posted by kn8Alpha View Post

All,

Changed oil today with Shell Advanced AX7 semi synthetic. Feels good to see all that dark slimy sludge out of the engine!

Am running AX5 (as far as I know, mineral) seems ok as of now (done some 500kms on it)

@kn8alpha do update us with your review of the semi synth. Thanks!

**nsm2285** · 09-04-2012, 09:44 PM

Originally posted by plasmabhai View Post

Well it seems like a single LED inside the unit has failed. Unfortunately it cannot be changed just like that. The terminals of the LED are soldered to the complete board and it is infact very difficult to desolder these LEDs individually without damaging the whole speedo board itself.

Thats why people who do LED backlight change mod on their consoles generally tape the original LED with black tape.

As far as service centre goes, they are going to tell you to either ignore this issue, or replace the speedo unit. As such the unit comes under warranty. If possible try and get it changed under warranty for free.

Avotron: better to show your problem to service centre and get it rectified for free under warranty. I have gotten my brake light bulb changed twice under warranty for free.

Thanks for reply guys. Just as I thought. Let's see what ASC says. Will be going to ASC in a week or two, due to time constraint.

**kn8Alpha** · 09-05-2012, 12:03 PM

Originally posted by nsm2285 View Post

Thanks for reply guys. Just as I thought. Let's see what ASC says. Will be going to ASC in a week or two, due to time constraint.

@nsm2285:

If you get a chance to hang around the service centre while the console is being fixed, please take some pics of how they disassemble it and share it with us.

Will help some of us "mod" enthusiasts

**phat_17** · 09-07-2012, 04:55 PM

Last Bar Fuel Blink

Hi All,

Question.. If I set my gas to reserve, Am i going to see the last bar of the fuel to Blink?

Or the last bar should still Blink if I set it to ON?

Thanks,
phat

**vajra_bng** · 09-07-2012, 05:03 PM

Originally posted by phat_17 View Post

Hi All,

Question.. If I set my gas to reserve, Am i going to see the last bar of the fuel to Blink?

Or the last bar should still Blink if I set it to ON?

Thanks,
phat

The last bar will blink if you set or dont set it to ON also, it will blink if the bike is on reserve that is less than 2L or 1.9L of gas(Petrol) the last bar starts to blink this is what i have experienced.

Hope this answers

**kn8Alpha** · 09-07-2012, 06:54 PM

Originally posted by vajra_bng View Post

The last bar will blink if you set or dont set it to ON also, it will blink if the bike is on reserve that is less than 2L or 1.9L of gas(Petrol) the last bar starts to blink this is what i have experienced.

Hope this answers

Agreed. The last bar of fuel indicator will blink if petrol level goes below a certain level in the tank.

It does not depend on the fuel knob position.

**phat_17** · 09-07-2012, 11:28 PM

Originally posted by kn8Alpha View Post

Agreed. The last bar of fuel indicator will blink if petrol level goes below a certain level in the tank.

It does not depend on the fuel knob position.

I know now whats the issue... My Last bar of Fuel Blinked when it was set to
reserve...

When I set it to ON, it doesnt go low enough to blink the last bar, it kills the engine instead.. unless I set it Back to Reserve to run again..

I discovered this when it was set to ON and i was down to the last bar, Engined Died and I've set to reserve, and it worked OK, I filled it with 1 liter of fuel, still on reserve.., now I see the last bar blinking...

maybe mine is different

**castro** · 09-24-2012, 11:57 PM

hi guys,
my dazzler completed 2 yrs and 24000k this august, since last month the engine suddenly stalls and wont start, i have to wait for some time and push start the bike in 2nd gear and after that it runs normally. this happened 3 times since last 1 month. engine oil is also being consumed since the last 2 oil changes. i change oil every 2000k, using shell advance ax7 ss since last 9000k. in neutral when i revv the engine to red line small quantity of white smoke is coming from exhaust. can u guys diagnosis wts wrong with my bike...... pls i need expert advice's before i take it to honda svc.

>battery is healthy.
>air filter recently replaced.

**sarbanoxley** · 09-25-2012, 12:04 AM

Originally posted by castro View Post

hi guys,
my dazzler completed 2 yrs and 24000k this august, since last month the engine suddenly stalls and wont start, i have to wait for some time and push start the bike in 2nd gear and after that it runs normally. this happened 3 times since last 1 month. engine oil is also being consumed since the last 2 oil changes. i change oil every 2000k, using shell advance ax7 ss since last 9000k. in neutral when i revv the engine to red line small quantity of white smoke is coming from exhaust. can u guys diagnosis wts wrong with my bike...... pls i need expert advice's before i take it to honda svc.

>battery is healthy.
>air filter recently replaced.

Rings gone - if not attended now the oil drinking will get worse and you will require complete engine overhaul - better get it done ASAP .But i am surprised uni. requiring bore work this soon

.

**ravi@17bhp** · 09-25-2012, 12:09 AM

Originally posted by castro View Post

hi guys,
my dazzler completed 2 yrs and 24000k this august, since last month the engine suddenly stalls and wont start, i have to wait for some time and push start the bike in 2nd gear and after that it runs normally. this happened 3 times since last 1 month. engine oil is also being consumed since the last 2 oil changes. i change oil every 2000k, using shell advance ax7 ss since last 9000k. in neutral when i revv the engine to red line small quantity of white smoke is coming from exhaust. can u guys diagnosis wts wrong with my bike...... pls i need expert advice's before i take it to honda svc.

>battery is healthy.
>air filter recently replaced.

Piston rings are leaking causing oil to enter into chamber, and thats why the white smoke from silencer. Sad the warranty of your bike is just over. Take your bike to the service center and get it repaired ASAP. Piston rings would be around 350 rupees. Labor charges would be around 800 rupees. Also, please confirm if the smoke is white or black. If its white, piston rings the culprit; if its black, valve stem seals are the culprit.

**s1d** · 09-25-2012, 12:17 AM

Originally posted by castro View Post

hi guys,
my dazzler completed 2 yrs and 24000k this august, since last month the engine suddenly stalls and wont start, i have to wait for some time and push start the bike in 2nd gear and after that it runs normally. this happened 3 times since last 1 month. engine oil is also being consumed since the last 2 oil changes. i change oil every 2000k, using shell advance ax7 ss since last 9000k. in neutral when i revv the engine to red line small quantity of white smoke is coming from exhaust. can u guys diagnosis wts wrong with my bike...... pls i need expert advice's before i take it to honda svc.

>battery is healthy.
>air filter recently replaced.

Originally posted by sarbanoxley View Post

Rings gone - if not attended now the oil drinking will get worse and you will require complete engine overhaul - better get it done ASAP .But i am surprised uni. requiring bore work this soon

.

if its white smoke and happens only when you rev it up hard, it could possibly be an issue with the valve/valve stem seal/guides (causing a small amount of oil leak to the combustion chamber). You could first start by getting the head removed and check the condition of the valves&seals/timing chain and get the seals/head gasket replaced along with valve lapping.
then drive the bike for around 50-100kms and check again if you get the white smoke. If you do, then you can go to the next step i.e. replacing the piston ring set.
Lastly, if this doesnt fix it, you might need a rebore with a new set of pistons & rings.

Maybe you could ask someone else to ride the bike at around 60kmph in 3rd gear & you call follow behind and observe if it smokes(and how badly)

**s1d** · 09-25-2012, 12:19 AM

Originally posted by ravi@17bhp View Post

If its white, piston rings the culprit; if its black, valve stem seals are the culprit.

I think its the other way around

..
